220*220*42.54 ,IPQ4019/IPQ4029 802.11ac Indoor Plastic

 220*220*42.54 ,IPQ4019/IPQ4029 802.11ac  Indoor Plastic

Description

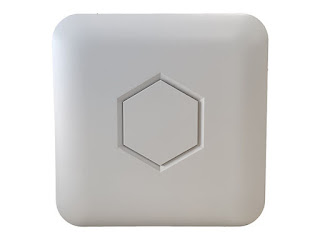

DR-AP40X9 (Two Versions) is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR40X9(IPQ4019/IPQ4029) Board;2 x 2.4G&5G Onmi Antennas; 1 x POE Adapter(24V^1A~48V^0.6A);1 x Enclosure.

Onmi Antenna

■  2 x 2.4G&5G Antenna

■  PCB Antenna

■  2.4G: 4dbi ;5G: 6dbi

Enclosure

■  Dimension: 220x 220 x 42.54mm

■  UV Protected and Durable ABS Radome

■  Support Wallys’DR40X9

Wallys Communications (Suzhou) Co LTD  develops, designs and manufactures wireless communication products, including routers, network cards, AP and antennas. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook. welcome to consult. (Web:wallystech  com)

EMAIL:sales@wallystech.com

WEB:https://www.wallystech.com/





      Absolute Maximum Rating


    Parameter

    Rating

    Unit

    Supply Voltage

    24V~48

    V

    Operating Temperature Range

    -40 to +70

    ºC

    Storage Temperature Range

    -45 to +105

    ºC

    Operating Humidity Range

    5 to +95 (non-condensing)

    %

    Storage Humidity Range

    0 to +90 (non-condensing)

    %




     Hardware Specifications


    Symbol

    Parameter

    CPU

    IPQ4029/IPQ4019（Quad core ARM Cortex A7 at 716.8 MHz）

    Antenna Connector

    2 x 5G MMCX connectors;2x2.4G MMCX

    10/100/1000Mbps Gigabit Ethernet

     2xRJ45

    SFP connector

    1xSFP fiber module connector (optional)

    3G/4G connector

    1xminipcie 3G/4G connector support with two sim card

    USB connector

    1xUSB 3.0 connector

    POE

    24V~48V passive POE

    DC Jack

    24V~48V power supply

    ROHS Compliance

    YES

    Dimension

    115mm x 105mm x 16mm

    Max Power

    48.1V x 0.180A= 8.658W

    Nor Flash

    2MB~32MB

    Nand Flash

    128MB

    DDR

    256MB~512MB


      Radio TX Specifications(5180MHz-5825MHz)


    Operating Mode

    Data Rate

    Power

    Tolerance

    1 Chain

    2 Chains

    802.11a

    6 Mbps

    27dBm

    30dbm

    ±2dB

    54 Mbps

    23dBm

    26dbm

    ±2dB

    802.11n HT20

    MCS0, MCS8

    26dBm

    29dbm

    ±2dB

    MCS7, MCS15

    22dBm

    25dbm

    ±2dB

    802.11n HT40

    MCS0, MCS8

    25dBm

    28dbm

    ±2dB

    MCS7, MCS15

    21dBm

    24dbm

    ±2dB

    802.11ac

    MCS0, MCS10,MCS20

    25dBm

    28dbm

    ±2dB

    MCS9,MCS19,MCS29

    19dBm

    22dbm

    ±2dB




     Radio RX Specifications(5180MHz-5825MHz)


    Operating Mode

     Data Rate

     Sensitivity

    802.11a

    6 Mbps

    -96dBm

    54 Mbps

    -78dBm

    802.11n HT20

    MCS0, MCS8

    -93dBm

    MCS7, MCS15

    -73dBm

    802.11n HT40

    MCS0, MCS8

    -90dBm

    MCS7, MCS15

    -70dBm

    802.11AC HT40

    MCS0, MCS10,MCS20

    -90dBm

    MCS9,MCS19,MCS29

    -67dBm

    802.11AC HT80

    MCS0, MCS10,MCS20

    -88dBm

    MCS9,MCS19,MCS29

    -62dBm




     Radio TX Specifications(2412MHz-2482MHz)


    Operating Mode

    Data Rate

    Power

    Tolerance

    1 Chain

    2 Chains

    802.11g

    6 Mbps

    27dbm

    30dbm

    ±2dB

    54 Mbps

    25dbm

    28dbm

    ±2dB

    802.11n HT20

    MCS0, MCS8

    26dbm

    29dbm

    ±2dB

    MCS7, MCS15

    25dbm

    28dbm

    ±2dB

    802.11n HT40

    MCS0, MCS8

    26dbm

    29dbm

    ±2dB

    MCS7, MCS15

    24dbm

    27dbm

    ±2dB


      Radio RX Specifications(2412MHz-2482MHz)


    Operating Mode

     Data Rate

     Sensitivity

    802.11g

    6 Mbps

    -96dBm

    54 Mbps

    -78dBm

    802.11n HT20

    MCS0, MCS8

    -93dBm

    MCS7, MCS15

    -73dBm

    802.11n HT40

    MCS0, MCS8

    -90dBm

    MCS7, MCS15

    -70dBm


     Version


    Item

    Information

    DR40X9-1

    CPU is IPQ4019

    DR40X9-2

    CPU is IPQ4029


     LED & GPIO header


    Item

    Information

    Note

    1

    PWR LED



    2

    Eth1 LED



    3

    Eth2 LED



    4

    2.4G LED

    GPIO32

    5

    5G LED

    GPIO50

    6

    Strength LED

    GPIO36

    7

    Strength LED

    GPIO39

    8

    NC



    9

    GND



    10

    Uart1_TX

    GPIO8

    11

    Uart1_RX

    GPIO9

    12

    NC



    13

    NC



    14

    NC



    15

    GND



    16

    PWR



     Serial Port


    Item

    Information

    1

    PWR

    2

    Uart0 TX

    3

    Uart0 RX

    4

    GND


      GPIO


    Item

    Information

     GPIO11

    Control for the switch of SIM cards
