wallys//wifi66 router IPQ6018/IPQ6010/IPQ6000/openwrt QCN9074 card

 wallys//wifi6 router IPQ6018/IPQ6010/IPQ6000/openwrt QCN9074 card

Wallys Communications (Suzhou) Co LTD  develops, designs and manufactures wireless communication products, including routers, network cards, AP and antennas. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook. welcome to consult. (Web:wallystech  com)

EMAIL:sales@wallystech.com

WEB:https://www.wallystech.com/

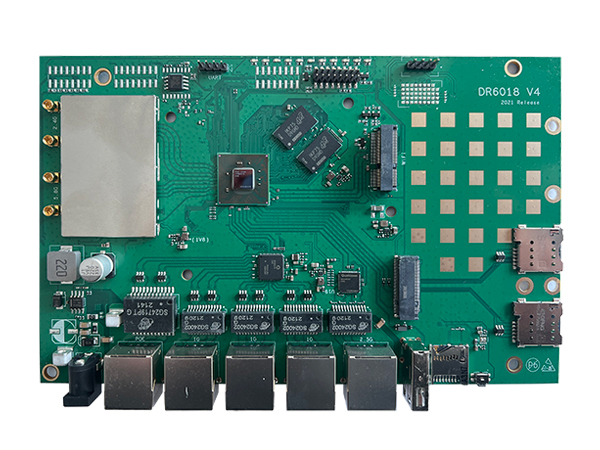

QCN9074 WiFi 6E Card OpenWRT, IPQ6010,802.11ax,

2x2 2.4G&5G 2.5Gbps Ethernet Port Support OpenWRT Support:QUECTEL RM500Q-GL&Support:

Qualcomm-Atheros IPQ6010

Quad-core ARM 64bit A53 @1.8GHz Processor

1GB DDRL3L System Memory

32MB NOR Flash, 256MB NAND Flash

Supports Dynamic Frequency Selection (DFS)

2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate

2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate

Support: QUECTEL RM500Q-GL

Support: QCN9074 WiFi 6E Card

    Symbol

    Parameter

    CPU

    Qualcomm-Atheros IPQ6010

    CPU Frequency

    Quad-core ARM 64 bit A53 @1.8 GHz processor

    System Memory

    1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design

    Ethernet Port

    1 x 1Gbps Ethernet Ports & POE3 x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port

    NGFF Slot

    M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0

    SD Card Slot

    1x SD Card Slot

    USB /header

    1x USB 2.0 Port

    POE

    24V~48V passive POE/Active POE(Suport 802.3bt)

    DC Jack

    24V power supply

    LED header

    FFC/FPC Connector

    Serial Port

    1x Serial Port 4 Pin Connector

    Wireless

    On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/802.11g/802.11n/802.11ax, max 23dBm per chain

    On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain

    4 x MMCX Connectors

    Bluetoothoptional

    Nor Flash

    8-32MB(normally is 8MB)

    Nand Flash

    256MB

    DDR

    1GB

    Dimension

    185mm x 116mm
